Submersible Carbotech™ - 47mm
selected accessories for Submersible Carbotech™ - 47mm
Automatic mechanical, P.9000 calibre, executed entirely by Panerai, 13¾ lignes, 7.9 mm thick, 28 jewels, Glucydur® balance, 28,800 alternations/hour. Incabloc® anti-shock device. Power reserve 3 days, two barrels. 197 components.
Hours, Minutes, Small Seconds, Date
carbotech. Anti-clockwise unidirectional rotating bezel with graduated scale.

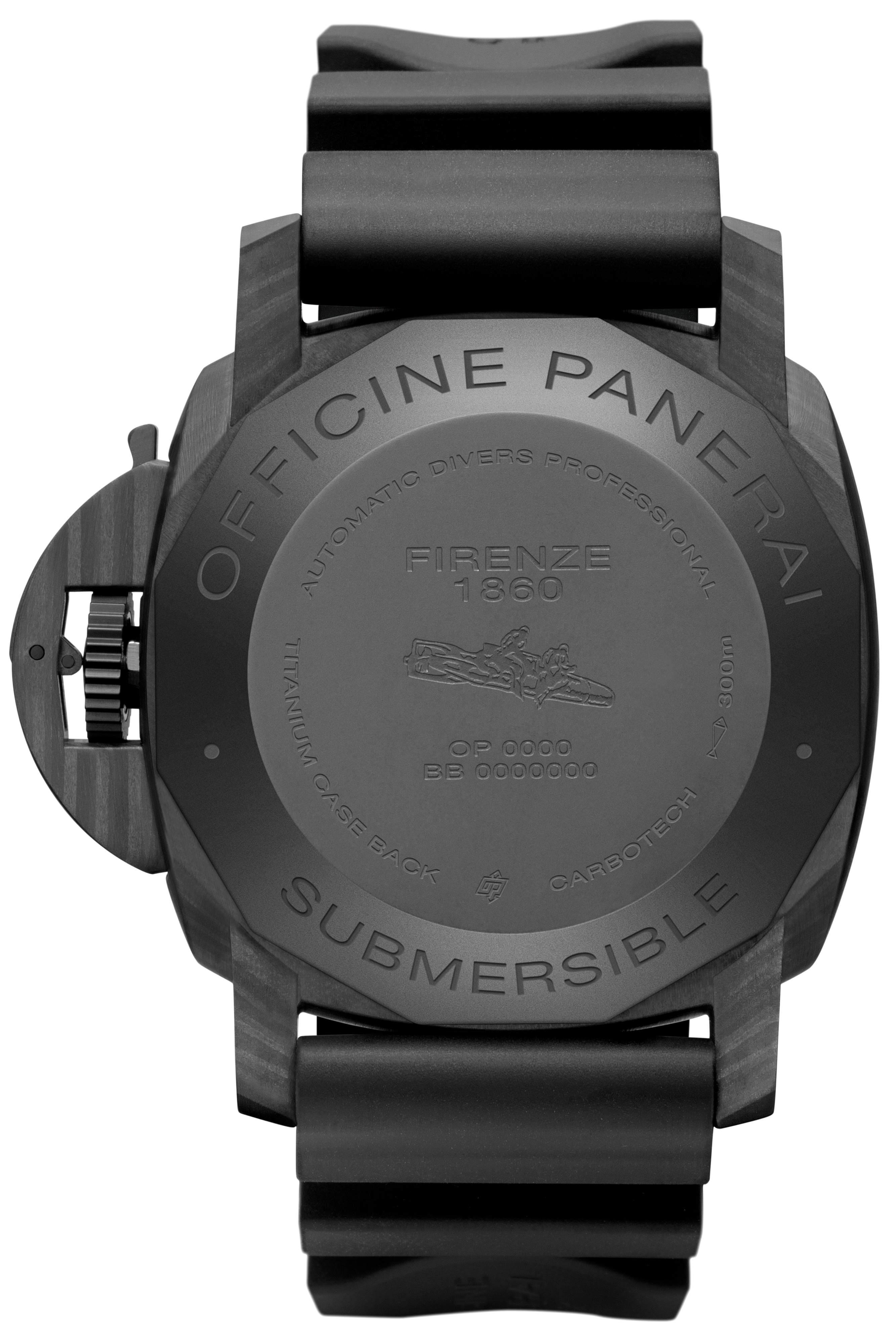

Screw, Titanium with hard black coating

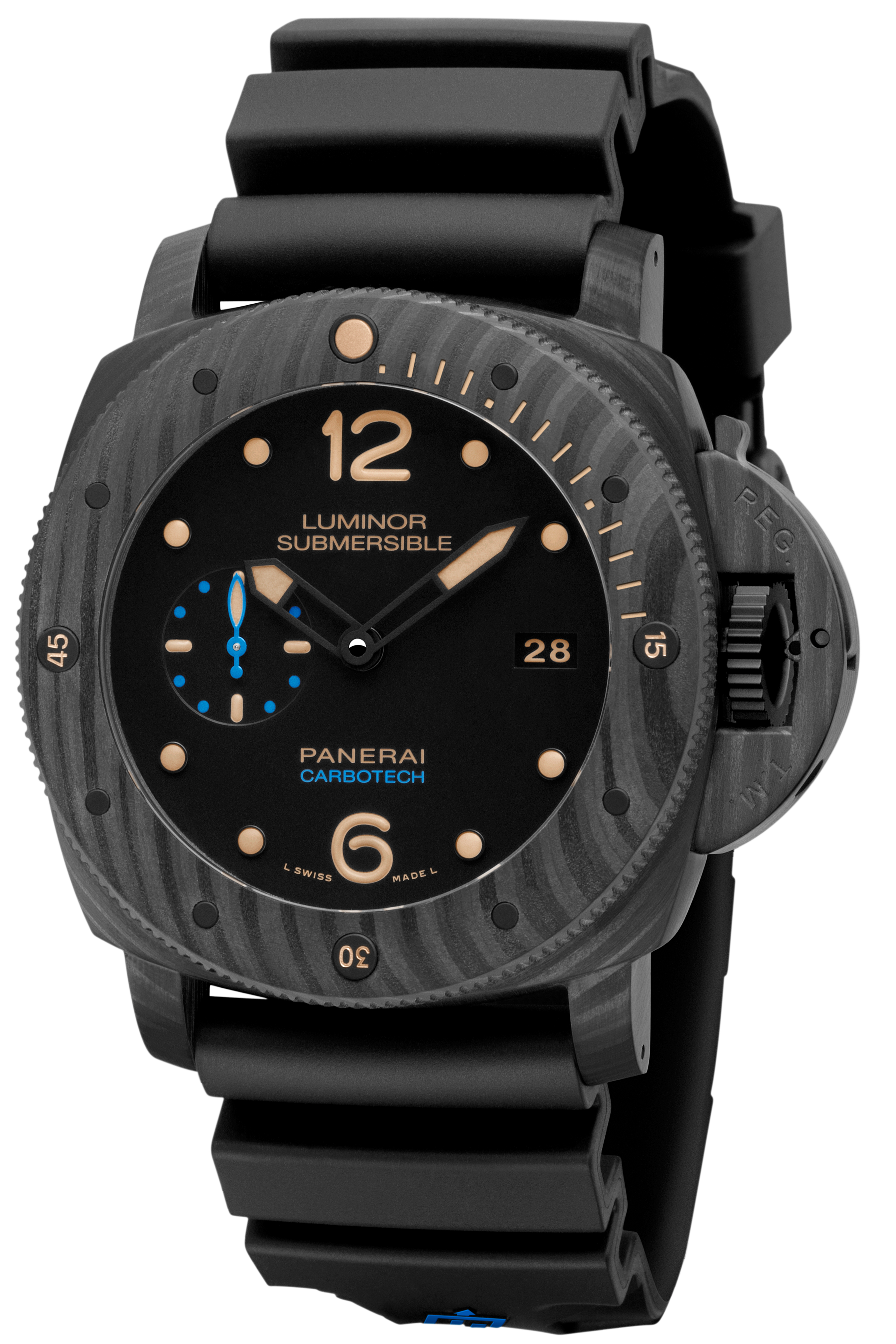

Black with applied luminous Arabic numerals and dots. Date at 3 o'clock, small seconds at 9 o'clock.
"30 bar (~300 metres)"
Caoutchouc Black, - Stitching, 26/22.0 Standard size
CARBOTECH TECHNICAL INNOVATION.
The Carbotech is a composite material based on carbon fibre, never before used in the world of watchmaking. As well as providing exceptional technical performance, Carbotech has an uneven, matt black appearance, which varies according the cutting of the material: the result is that each example is unique.
The structure of Carbotech™ is designed to enhance both the aesthetics and the performance of the material.To form the plates of Carbotech™ from which these components are made, thin sheets of carbon fibres are compressed at a controlled temperature under high pressure together with a high-end polymer, PEEK (Polyether Ether Ketone), which binds the composite material, making it even stronger and more durable.
The P.9000 calibre, created entirely by Officine Panerai and used in a series of Luminor 1950 and Radiomir models, is fitted with various functions: it is an automatic calibre with a 3-day power reserve and a unique technical design which makes these movements immediately recognizable. The calibre has a diameter of 13¾ lignes and numerous features: two barrels which guarantee 72 hours of power reserve; a single piece rotor which winds by moving in both directions thanks to an automatic ratchet device; a balance wheel with adjusting screws, oscillating at a frequency of 4 Hz. To house this movement, a specially made version of the Luminor 1950 case has been designed, keeping the proportions of the original but featuring a slightly less convex sapphire crystal which only barely protrudes from the bezel.Discover calibre
