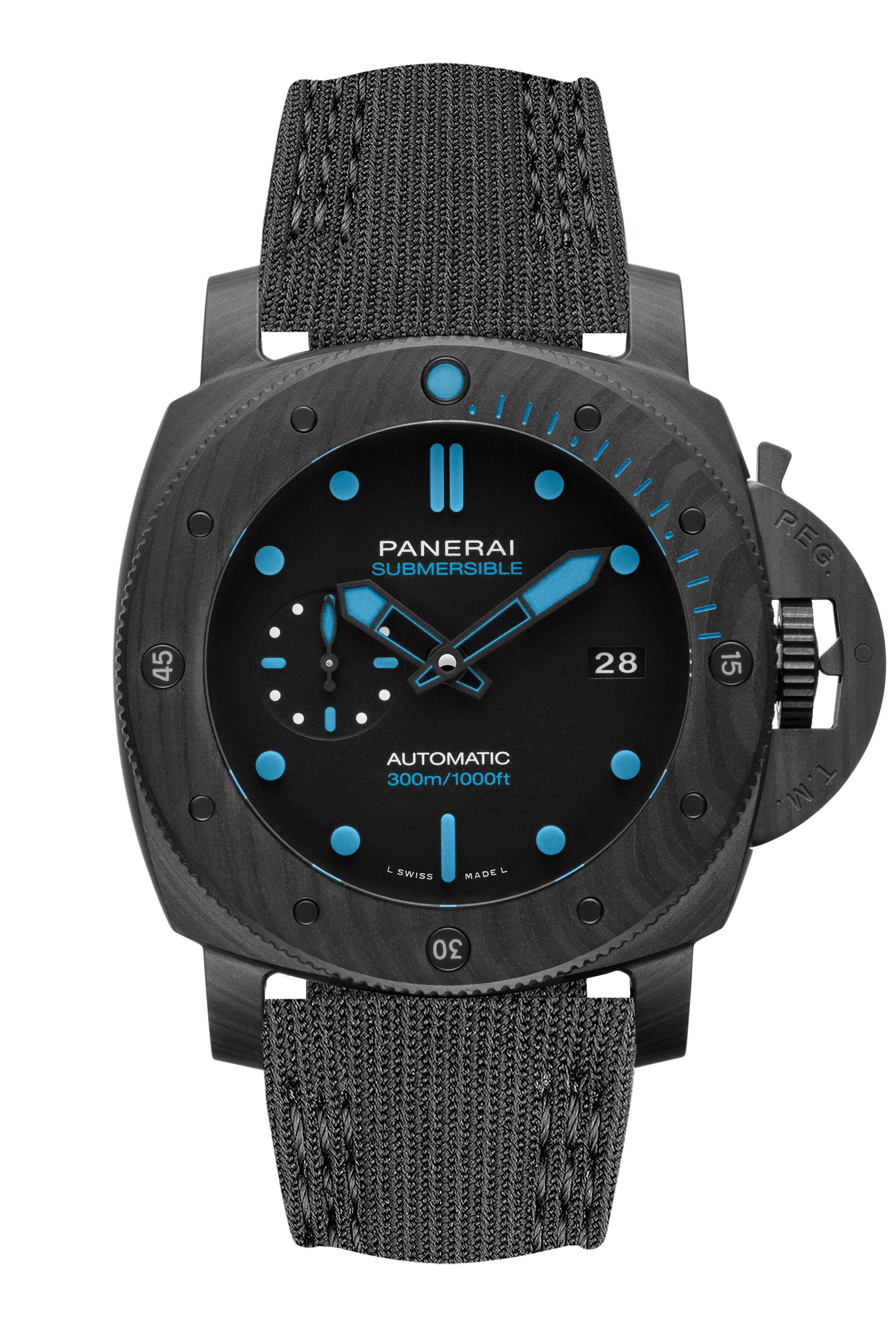

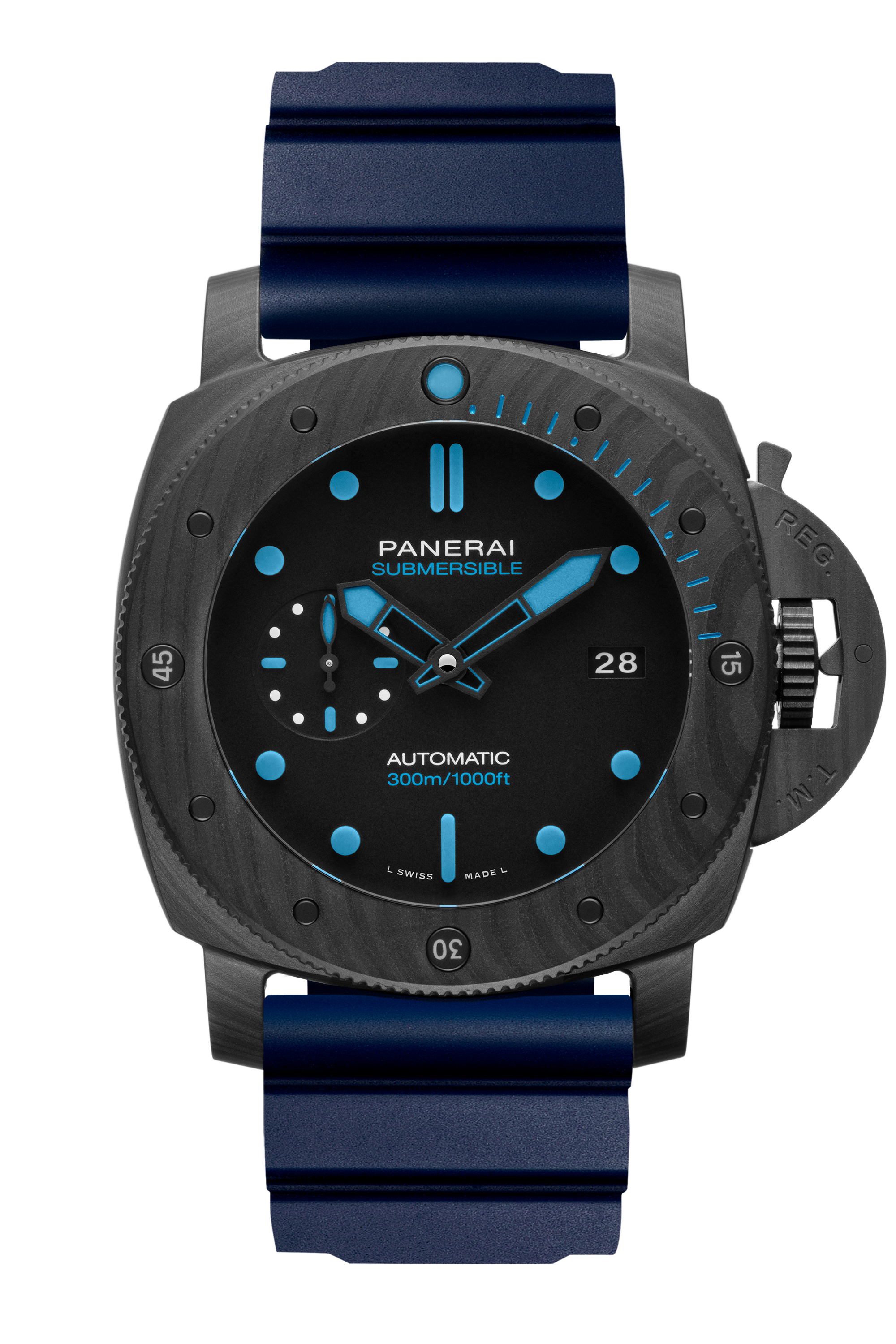

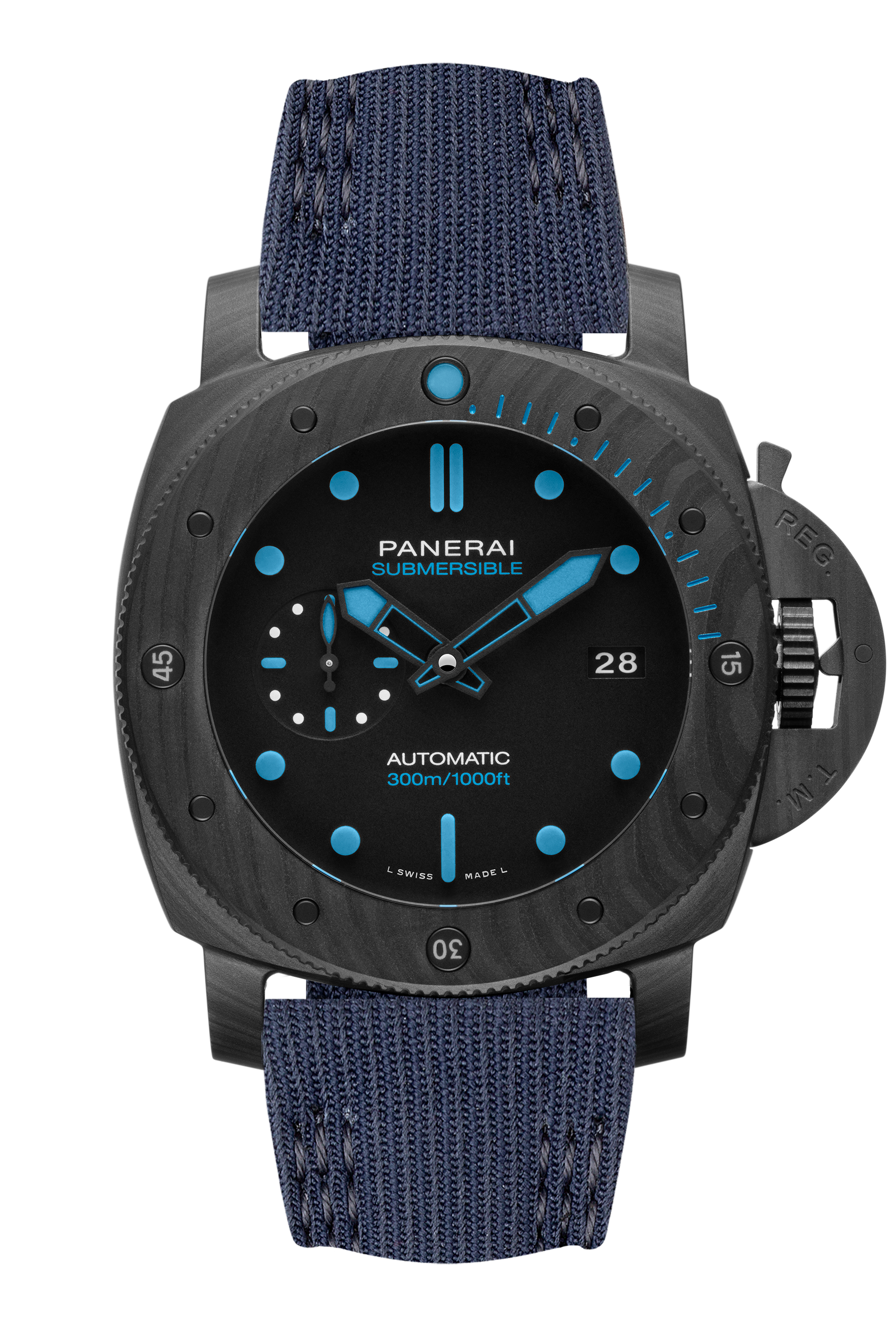

Submersible Carbotech™ - 47mm
PAM01616















Please note that images are stock photographs and that colors and sizes may not exactly correspond to actual products.
As of January 1, 2020, Panerai will discontinue the sale or distribution of alligator and crocodile products in California, in adherence with state law.
selected accessories for Submersible Carbotech™ - 47mm
uneven matt unique
The Carbotech™ case, crown-protecting device and unidirectional rotating bezel ensure extreme lightness and resistance. Carbotech™ has an uneven, matt black appearance, which varies according the cutting of the material: the result is that each watch is unique.

Technical details
Movement
Automatic mechanical, P.9010 calibre, executed entirely by Panerai, 13¾ lignes, 6.0 mm thick, 31 jewels, Glucydur® balance, 28,800 alternations/hour. Incabloc® anti-shock device. Power reserve 3 days, two barrels. 200 components.
Functions
Hours, minutes, small seconds, date
Case
Diameter 47mm, carbotech
Bezel
Carbotech. Anti-clockwise rotating bezel with graduated scale
Back
Screw, titanium with black coating
Dial
Black with luminous hour markers and dots. Date at 3 o’clock, small seconds at 9 o’clock
Water Resistance
"30 bar (~300 metres)"
Strap
Caoutchouc Black, - Stitching, 26/22.0 Standard size
panerai submersible
The unidirectional rotating bezel enables the times of immersion to be calculated with confidence, while legibility in the dark is ensured by Super-LumiNova® coating applied to the markers and the large skeleton hands. The rubber strap fitted to the watch is perfect for diving and very tough.

CARBOTECH™
The structure of Carbotech™ is designed to enhance both the aesthetics and the performance of the material.To form the plates of Carbotech™ from which these components are made, thin sheets of carbon fibres are compressed at a controlled temperature under high pressure together with a high-end polymer, PEEK (Polyether Ether Ketone), which binds the composite material, making it even stronger and more durable.

P.9010 calibre
The automatic P.9010 calibre, entirely developed and created in the Panerai Manufacture in Neuchâtel, has central hour and minute hands, the small seconds dial at 9 o’clock and the date at 3 o’clock. The energy necessary to accumulate a power reserve of three days – the basic standard for Panerai in-house movements – is stored in two spring barrels whose springs are wound by an oscillating weight operating in both directions. Consisting of 200 components including 31 jewels, the calibre has a diameter of 13¾ lignes and it is 6 mm thick. The balance, fixed by a bridge with twin supports, oscillates at a frequency of 28,800 vibrations per hour (4 Hz). It is associated with the device which stops it as soon as the winding crown is pulled out, enabling the watch to be perfectly synchronised with a reference signal. In the P.9010 calibre the hours can be conveniently adjusted without interfering with the movement of the minute hand, thanks to the device which directly moves only the relative hand in jumps of one hour forward or backwards. This function is very useful when changing time zones or moving between summer time and winter time, and conveniently the adjustment of the hour hand is automatically connected to the date indicator.
Discover calibre
