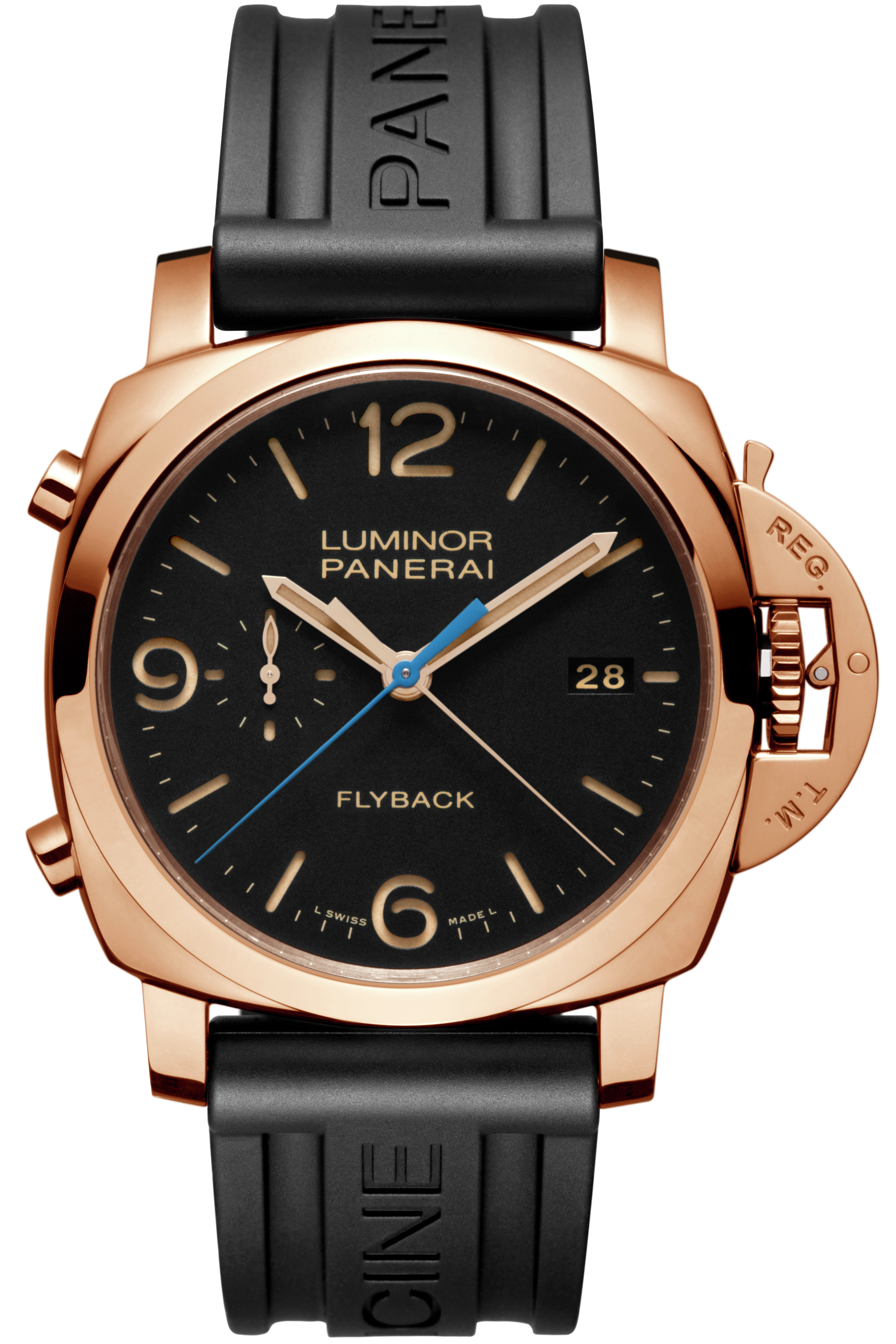

Luminor Chrono Flyback - 44mm
PAM00525
Please note that images are stock photographs and that colors and sizes may not exactly correspond to actual products.
Technical details
Movement
Automatic mechanical, P.9100 calibre, executed entirely by Panerai, 13¾ lignes, 8.15 mm thick, 37 jewels, Glucydur® balance, 28,800 alternations/hour. Incabloc® anti-shock device. Power reserve 3 days, two barrels. 302 components.
Functions
Hours, Minutes, Small Seconds, Date, Chronograph flyback, Seconds Reset
Case
Diameter 44 mm, polished Goldtech™
Bezel
Polished Goldtech™
Back

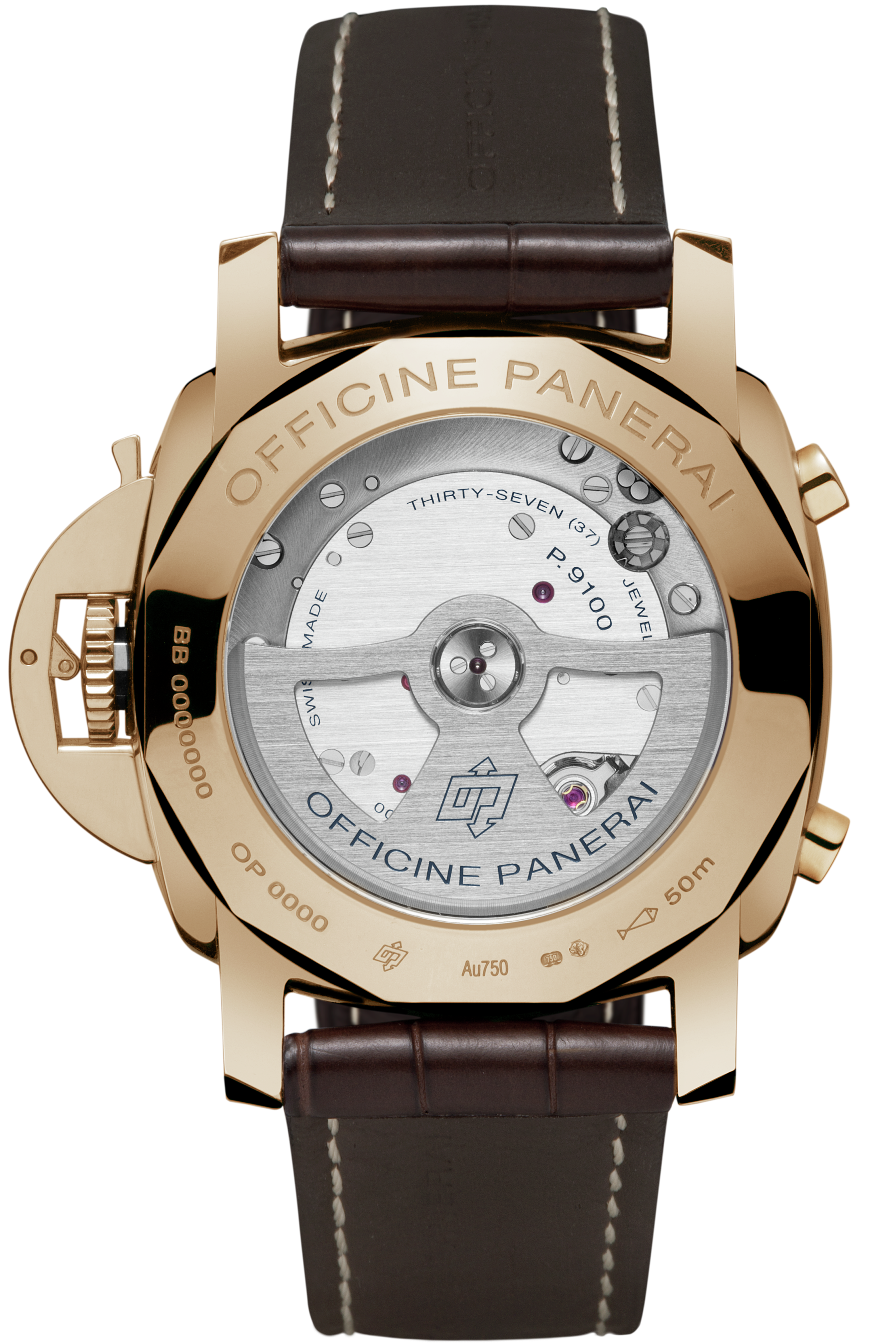

See - through sapphire crystal
Dial
Black with luminous Arabic numerals and hour markers. Date at 3 o’clock, seconds at 9 o’clock, central chronograph seconds and minutes hands.
Water Resistance
"5 bar (~50 metres)"
Strap
Ecru 24/22.0 Standard
THE CHRONO FLYBACK.
The flyback function, controlled by a push-button at eight o’clock, instantly returns the chronograph hands to zero and simultaneously restarts without it being necessary first to stop them and return them to zero by pressing the stop and reset buttons.
PANERAI GOLDTECH
The gold used by Panerai is a special alloy, different from standard gold. Panerai goldtech has a percentage of copper giving the material an intense red hue that is particularly elegant and sophisticated. Platinum is another fundamental element of the Panerai gold alloy, as it helps to prevent the metal from oxidising.
P.9100 calibre
The P.9100 calibre is the first automatic movement with chronograph functions developed by Officine Panerai and it is produced entirely in the Panerai manufacture in Neuchâtel, with materials and standards of workmanship at the peak of the sector in terms of technology, quality and reliability. With a chronograph with a vertical clutch and column wheel, the new calibre is unusual in that the chronograph minutes are displayed by a central hand which jumps forward once every 60 seconds. It also has the useful flyback function. This enables the chronograph hands which are already running to be returned instantaneously to zero and restarted without first having to stop them, return them to zero and then restart them. This function is controlled by the push-button at eight o’clock, which is also used to return both hands to zero when the chronograph has already stopped. The two spring barrels in series give a power reserve of 72 hours. The choice of the double spring barrel enables thinner, longer springs to be used, which is beneficial for the duration and evenness of the supply of energy.
Discover calibreMAINTENANCE
Panerai watches are produced to very high standards of quality. It is worth remembering that the mechanical parts run 24 hours a day when used, so the watch must undergo regular maintenance to ensure long life and good operation.
