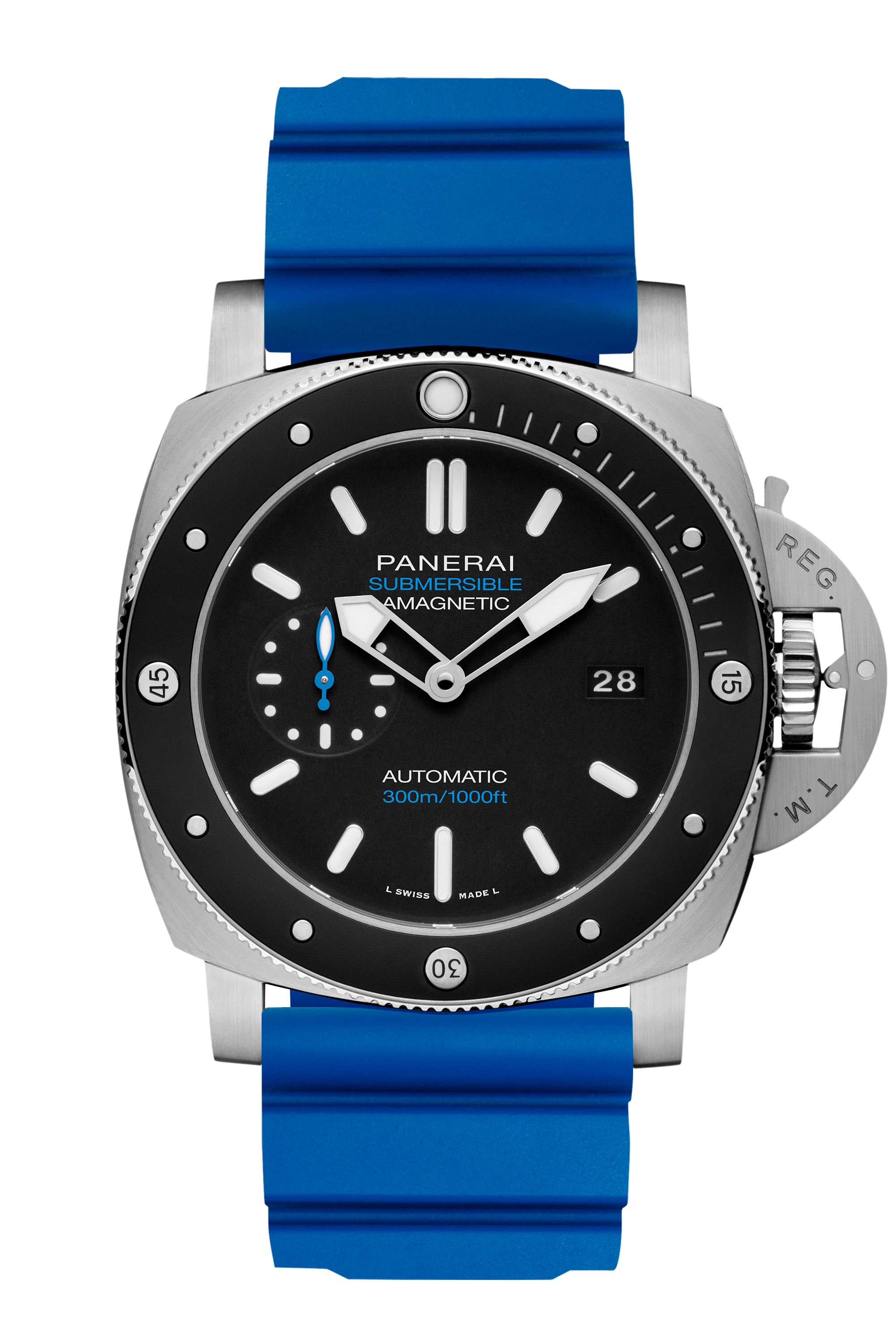

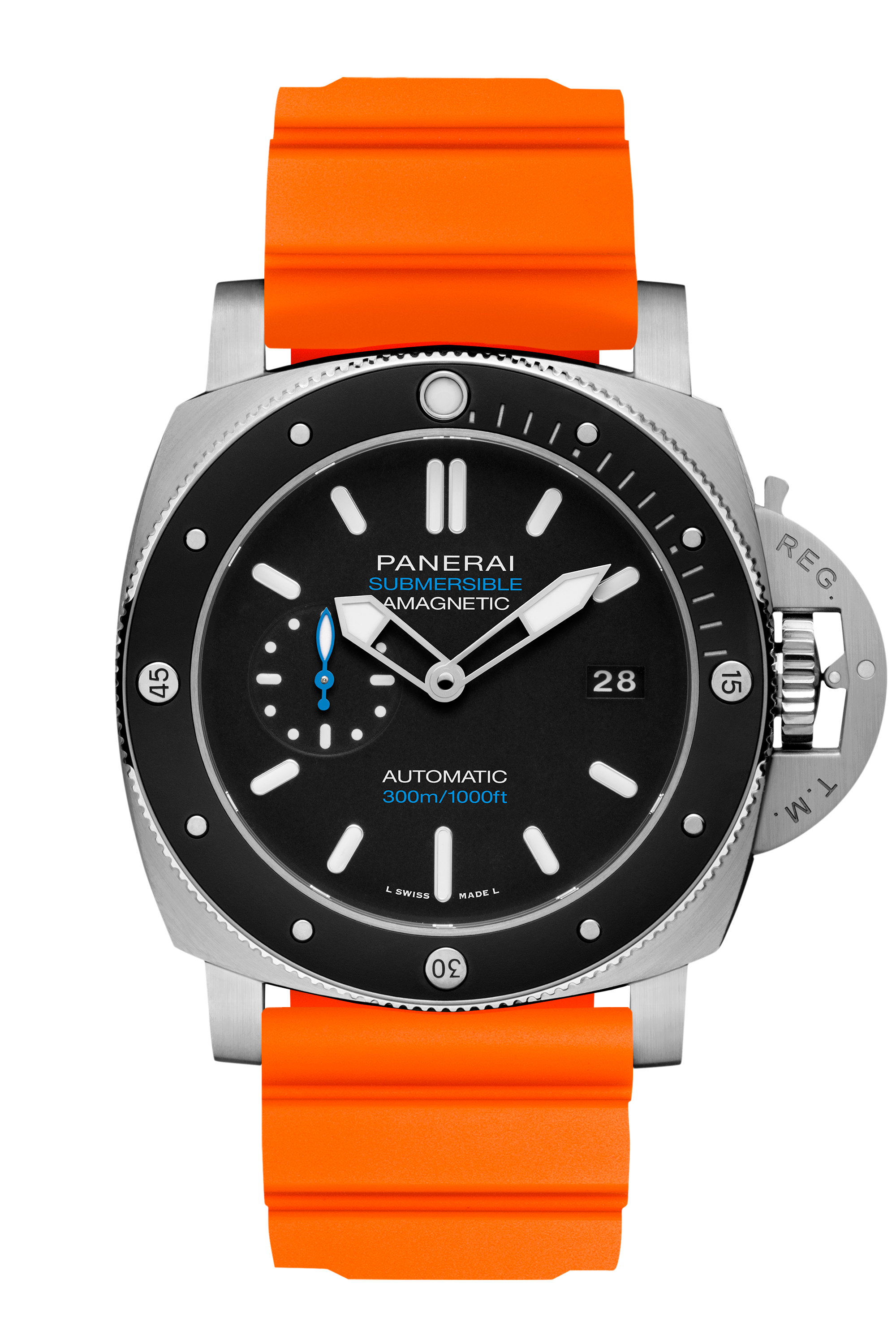

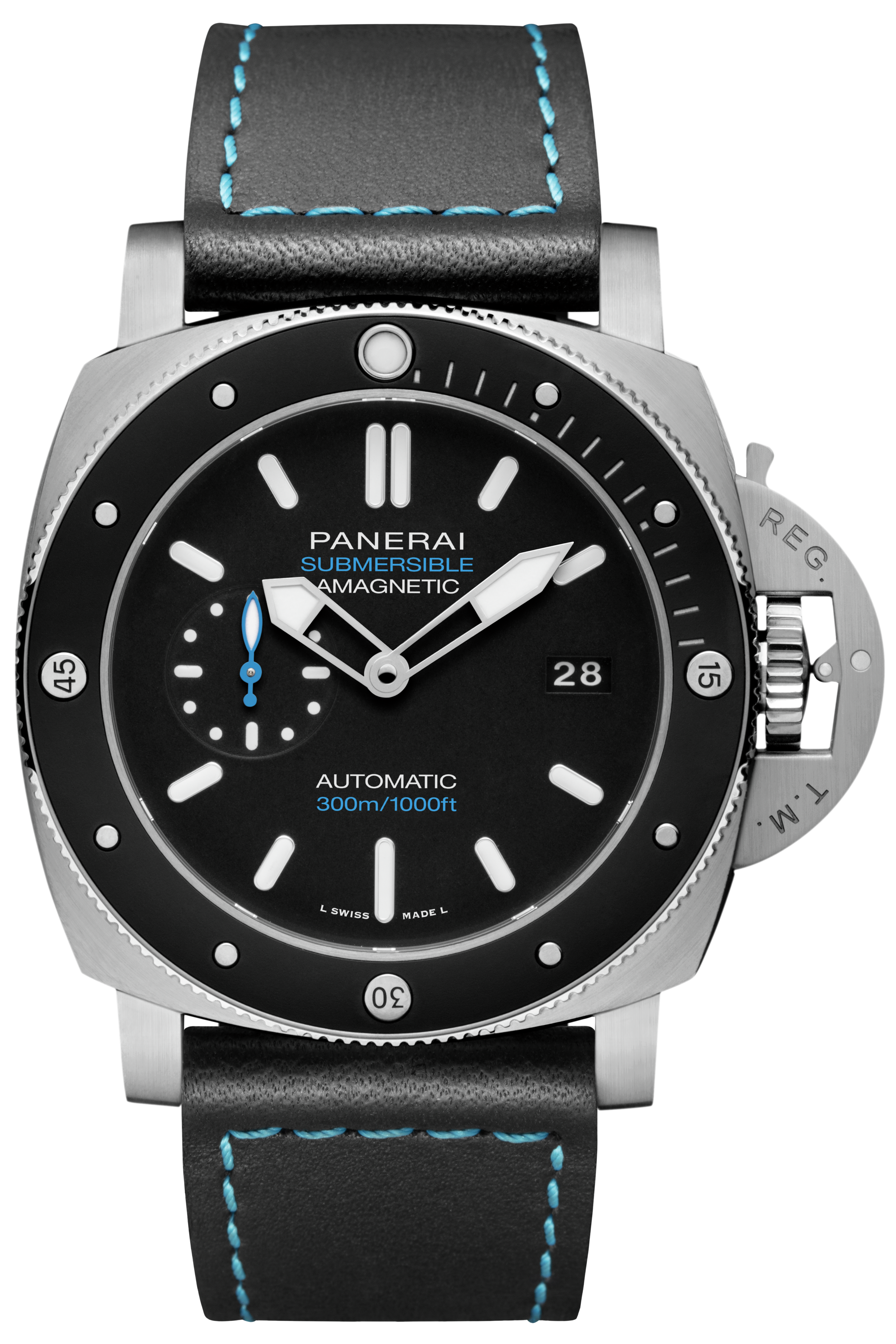

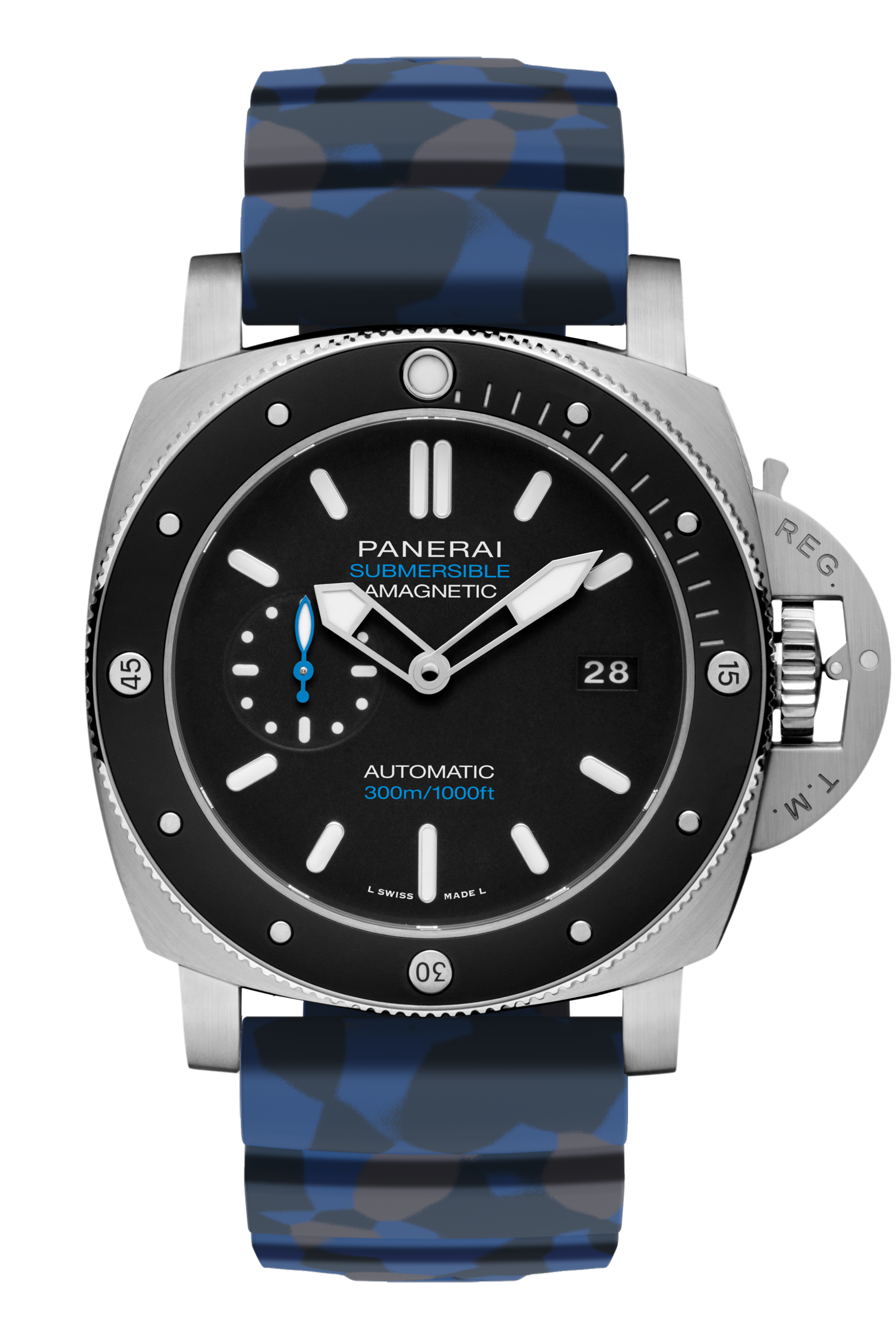

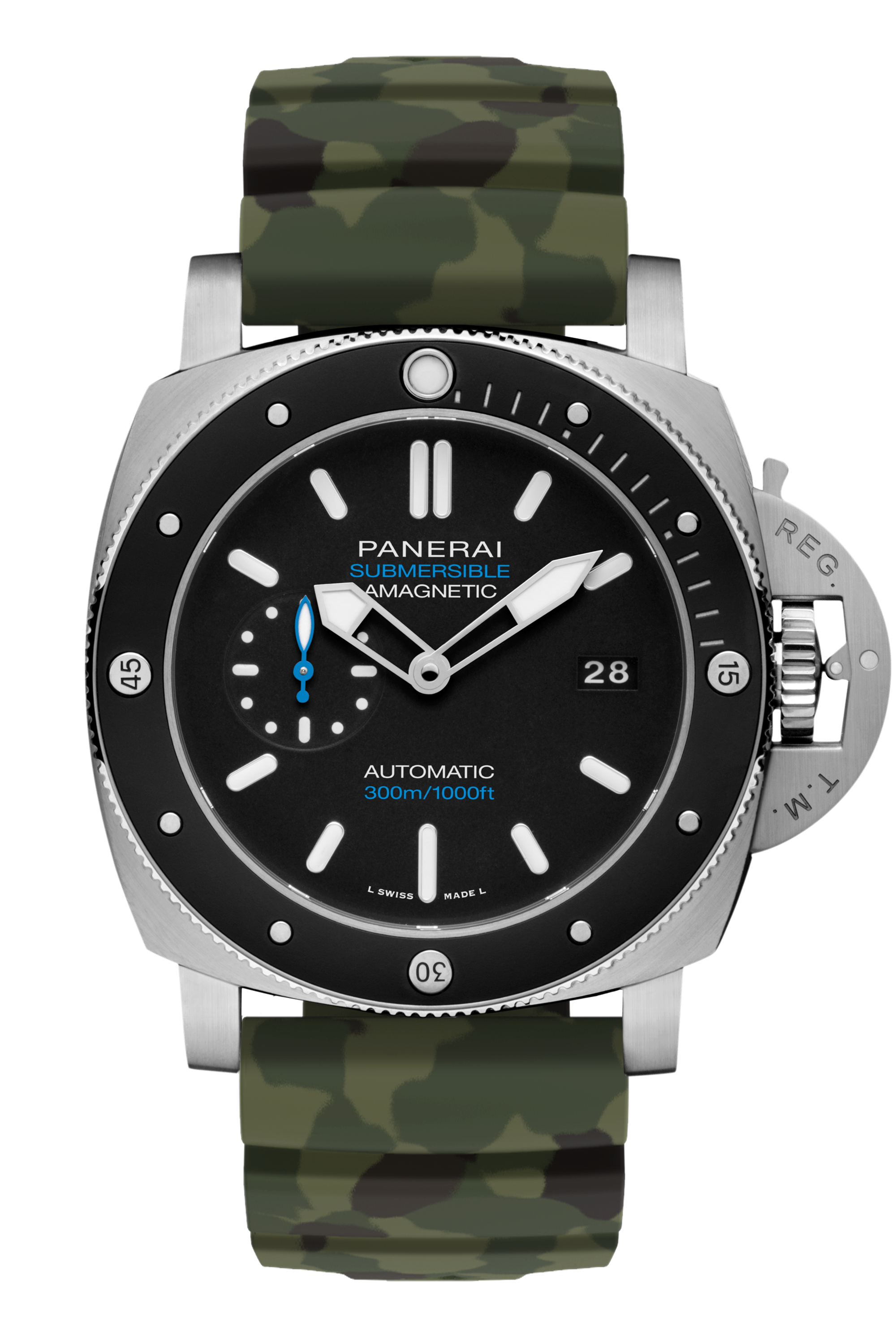

Submersible Amagnetic - 47mm
PAM01389
Please note that images are stock photographs and that colors and sizes may not exactly correspond to actual products.
selected accessories for Submersible Amagnetic - 47mm
Technical details
Movement
Automatic mechanical, P.9010 calibre, executed entirely by Panerai, 13¾ lignes, 6.0 mm thick, 31 jewels, Glucydur® balance, 28,800 alternations/hour. Incabloc® anti-shock device. Power reserve 3 days, two barrels. 200 components.
Functions
Hours, minutes, small seconds, date
Case
diameter 47mm, brushed titanium
Bezel
Ceramic/Titanium. Anti - clockwise rotating bezel with graduated scale

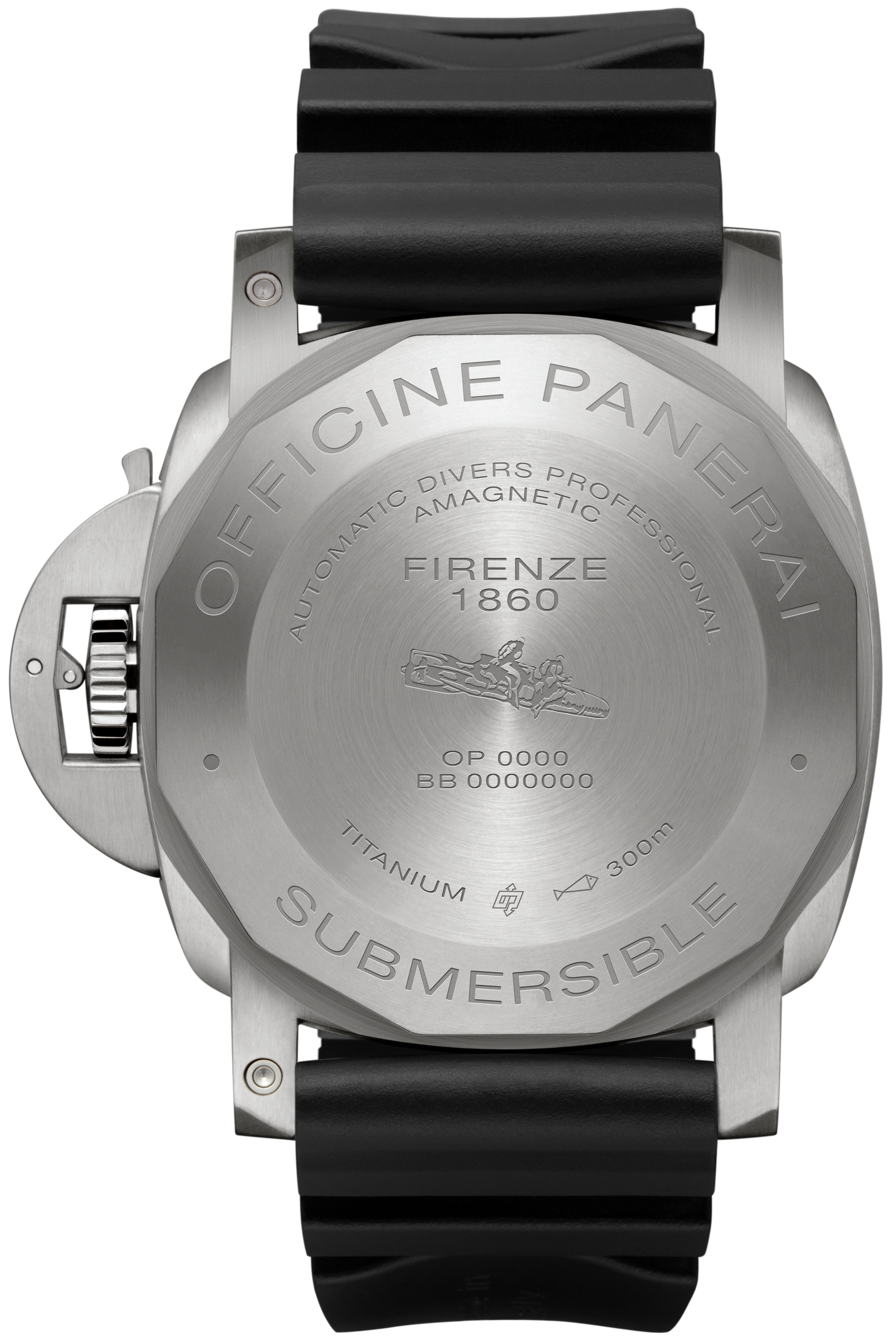

Back
screw, titanium
Dial
black with luminous hour markers and dots. Date at 3 o’clock, seconds at 9 o’clock
Water Resistance
"30 bar (~300 metres)"
Strap
- 26/22.0 Standard
AMAGNETIC.
High resistance to magnetic fields, from a minimum of 4.800 A/m up to 40,000 A/m in the Luminor Submersible 1950 Amagnetic: a limit more than eight times higher than that required by International Standards.
PANERAI TITANIUM
Light, strong and hypoallergenic, the remarkable physical, mechanical and corrosion-resistant qualities of titanium have made this metal one of the most valued in fine watchmaking, as well as a material of choice for the military, aeronautical and aerospace industries.
P.9010 calibre
The automatic P.9010 calibre, entirely developed and created in the Panerai Manufacture in Neuchâtel, has central hour and minute hands, the small seconds dial at 9 o’clock and the date at 3 o’clock. The energy necessary to accumulate a power reserve of three days – the basic standard for Panerai in-house movements – is stored in two spring barrels whose springs are wound by an oscillating weight operating in both directions. Consisting of 200 components including 31 jewels, the calibre has a diameter of 13¾ lignes and it is 6 mm thick. The balance, fixed by a bridge with twin supports, oscillates at a frequency of 28,800 vibrations per hour (4 Hz). It is associated with the device which stops it as soon as the winding crown is pulled out, enabling the watch to be perfectly synchronised with a reference signal. In the P.9010 calibre the hours can be conveniently adjusted without interfering with the movement of the minute hand, thanks to the device which directly moves only the relative hand in jumps of one hour forward or backwards. This function is very useful when changing time zones or moving between summer time and winter time, and conveniently the adjustment of the hour hand is automatically connected to the date indicator.
Discover calibreMAINTENANCE
Panerai watches are produced to very high standards of quality. It is worth remembering that the mechanical parts run 24 hours a day when used, so the watch must undergo regular maintenance to ensure long life and good operation.
