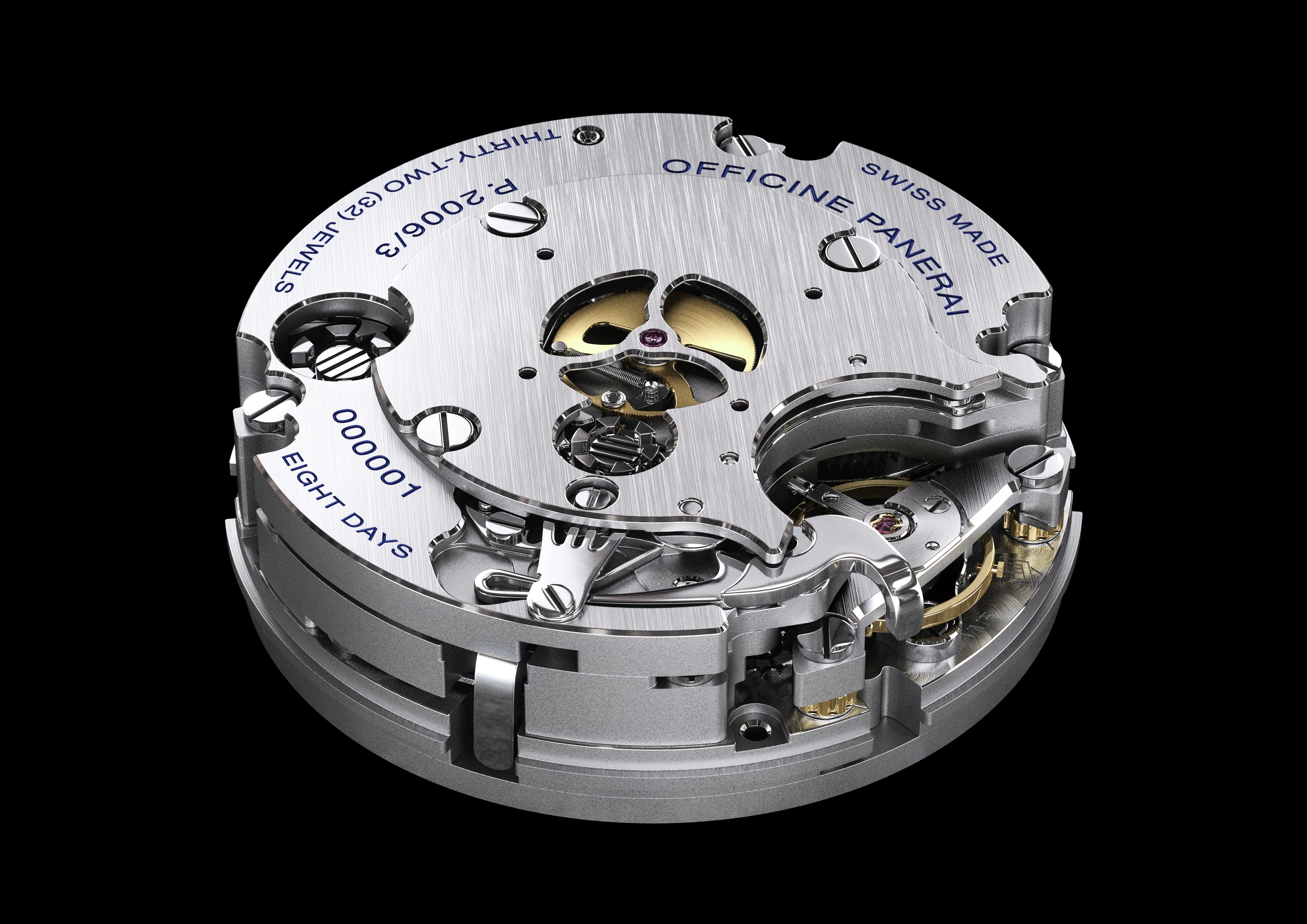

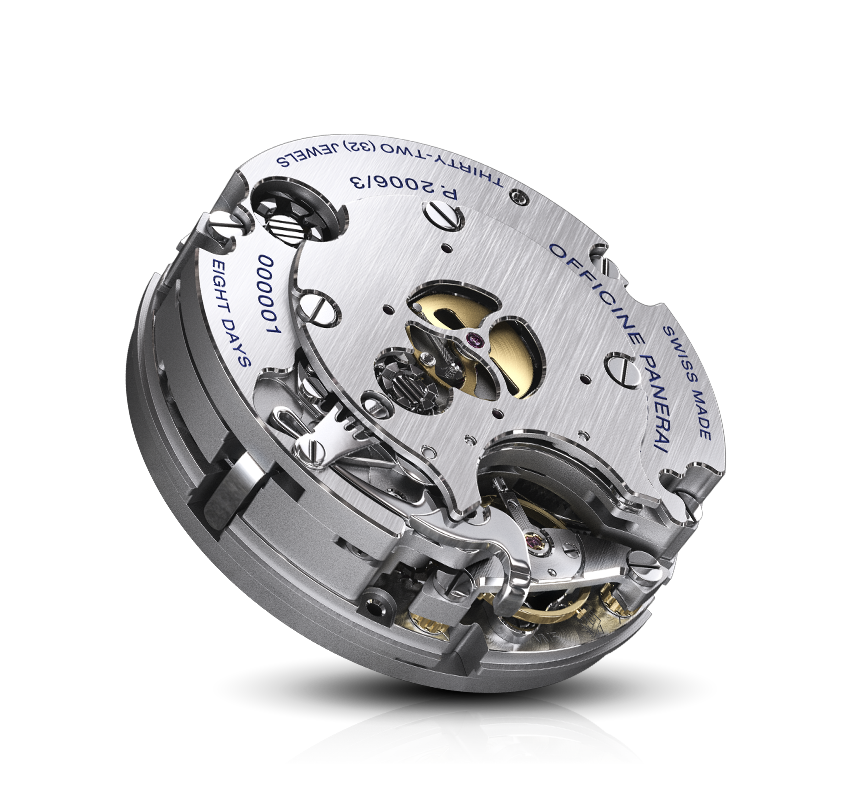

P.2006/3 calibre

Functions
Hours, Minutes, Small Seconds, Power Reserve Indicator, Seconds Reset, Split-seconds Chronograph
Technical details
Hand-wound mechanical, P.2006/3 calibre, executed entirely by Panerai, 13¾ lignes, 9.6 mm thick, 32 jewels, Glucydur® balance, 28,800 alternations/hour. KIF Parechoc® anti-shock device. Power reserve 8 days with linear indicator, three barrels. Double column wheel, 356 components.
Functions
Hours, Minutes, Small Seconds, Power Reserve Indicator, Seconds Reset, Split-seconds Chronograph
Technical details
Hand-wound mechanical, P.2006/3 calibre, executed entirely by Panerai, 13¾ lignes, 9.6 mm thick, 32 jewels, Glucydur® balance, 28,800 alternations/hour. KIF Parechoc® anti-shock device. Power reserve 8 days with linear indicator, three barrels. Double column wheel, 356 components.

Characteristics

The P.2006 hand-wound mechanical calibre was developed from the P.2004 single-button chronograph, but in addition it has the split-seconds function, controlled by a second button at 10 o’clock: two superimposed central hands permit the measurement of two events simultaneously or the measurement of split times. The power reserve is 8 days and this is displayed on the dial by a linear indicator. While sharing the vertical clutch of the chronograph, the P.2006 differs from the P.2004 calibre in that it has a second column wheel and two centre wheels, connected to the respective superimposed hands: the first and main one is the chronograph hand itself and the second is the split-seconds hand. The complex construction of the P.2006 calibre involves the use of special, highly resistant materials, in particular for the arbors of the chronograph hands, which are fitted one inside the other, and which are 14 mm long. The P.2006 calibre also has the seconds reset device which resets the seconds hand to zero, enabling the watch to be synchronized perfectly with a reference time signal.
